Intermittent bonded ribbon production line explained
Equipment for producing rollable formats in optical-fiber manufacturing is provided by Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Buyers can compare the capacity of this setup against their intended product range because it is designed for 12- and 16-fiber ribbons. Its split-type construction may also affect factory space and installation requirements.
Fiber Cable Sheathing Line FTTH Cable Production Line SZ Stranding Line

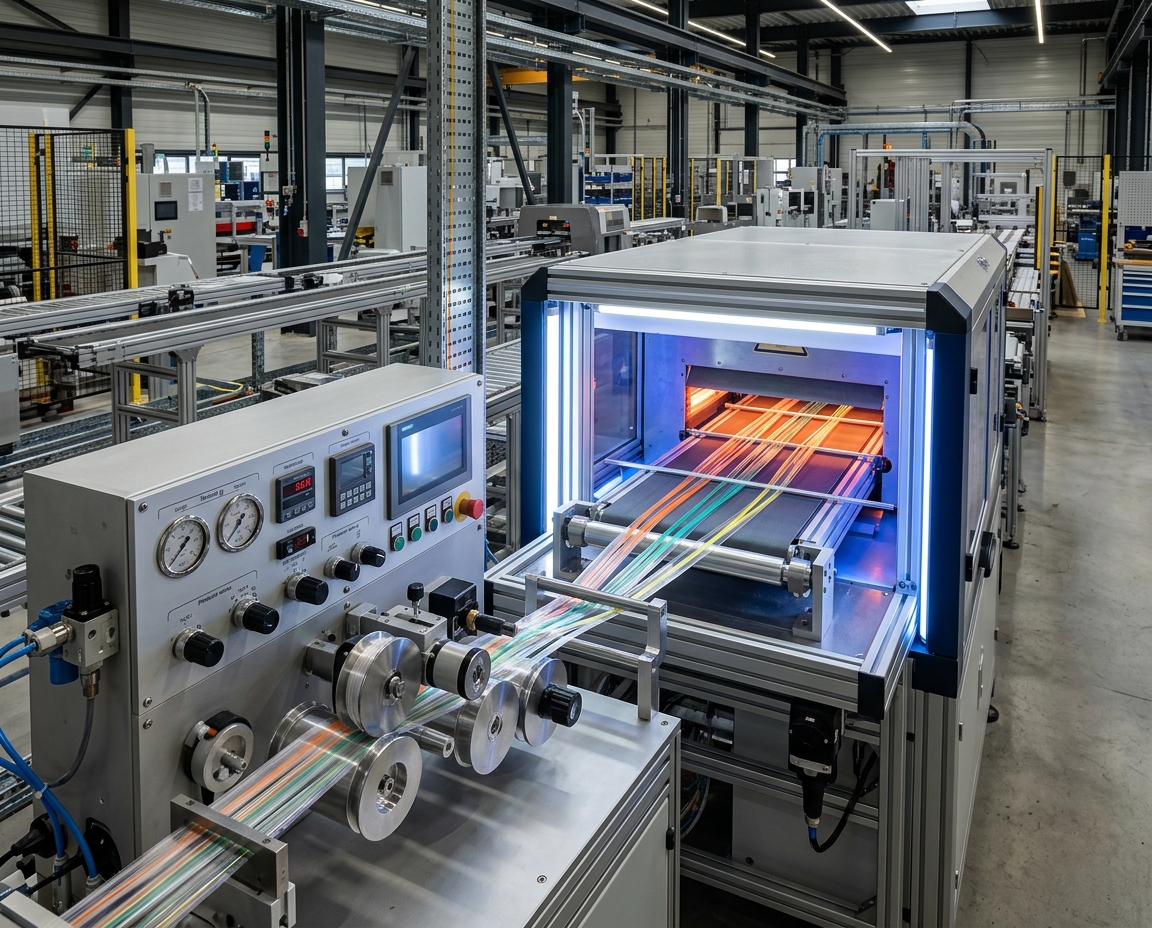

The stated construction speed for this particular production line is 600 m/min. The process combines fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up. The full process is important to evaluate, not just the stated speed.
Before purchasing, review factory utilities, reel requirements, available floor space, and installation conditions. Request the supplier’s documentation package and verify that the system matches your cable design and operating needs. Early planning for these details can reduce setup delays and make startup smoother.
Key Takeaways
- Designed for rollable 12- and 16-fiber formats.
- Listed speed: 600 m/min for this equipment.
- Features a split-type construction.
- Includes curing, monitoring, pulling, and take-up stages.
- Before purchasing, verify utilities, reels, installation requirements, and supplier documentation.
Intermittent Bonded Ribbon Production Line
Examine The Intermittent Bonded Ribbon Production Line
To create rollable IBR formats, three mold groups arrange fibers for the application of small adhesive dots. Operators can adjust the mold position from 0 to 15 mm to support consistent spacing and shape.
Make Rollable Fiber Ribbons Using Precision Bonding
A 16-spool pay-off supplies fiber to the machine, while guide rollers with U-shaped grooves keep individual strands organized. Hard-anodized roller surfaces support steady contact during processing. The adjustable valve arrangement supports 12F and 16F layouts, using 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to verify tension control settings that suit your particular cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
The stated construction speed reaches 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. The system also offers T-type or fiber-optic take-up reels. Assess whether reel capacity suits your operating needs and anticipated changeover time.
Review The Production Line’s Key Equipment And Controls
Tension, resin placement, and UV exposure must work together to deliver reliable output. The system helps operators match settings to their cable design and fiber ribbon requirements.
Manage Fiber Tension, Resin Dispensing, And UV-LED Curing Together
Every pay-off unit uses electro-pneumatic adjustment. Dispensers can operate independently or in linked groups, with adhesive-dot spacing and counts configured through the interface.
Before UV-LED post-curing, three pre-curing ovens serve the mold groups. Ask the supplier to confirm resin compatibility and the relevant operating conditions.
Lamp current, oven temperature, alarms, and preset lengths are monitored or managed through the Siemens PLC and touchscreen. Before purchase, review cabinet requirements and power supply needs.
| Process Stage | Technical Specification | Buyer check |
| Tension of fibers | Pay-off tension: 0.4 to 2 N with ±0.02 N; capstan tension: 50 to 500 g with ±5 g accuracy | Match settings to cable needs |
| Resin dispensing | Individually operated or linked units with adjustable adhesive-dot spacing and count | Review interface settings |
| UV-LED curing | Three 800 W pre-curing ovens; one 6 kW post-curing oven; 395 nm ± 3 nm; at least 85% cure under stable, high-speed conditions | Verify compatibility with the resin |
| Monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; real-time lamp current and oven temperature, alarms, preset lengths | Verify cabinet and power supply requirements |
Plan Installation, Operating Conditions, And Line Configuration
Prepare a designated area before the equipment arrives. The optical fibre system requires an enclosed, clean, dry, and draft-free environment. Maintain temperatures between 15°C and 25°C and humidity at or below 85%. Maintaining these conditions helps preserve equipment protection and operating precision.
Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. Nitrogen at 7 bar with 99.99% purity and compressed air at 6 bar are specified for the system. The electrical supply must be three-phase, five-wire, and 380 V ±10%.
- Allow space for the cabinet, components, resin, and access to service parts. Before starting the line, confirm the temperature settings and tension control.
- Plan around the specified reel dimensions of Φ410 mm × Φ50.8 mm × 391 mm. The take-up unit supports reels weighing up to 30 kg.
- Account for the main power feed-in cable when preparing the site. The equipment package does not include connection cables and cable trays.
The supply scope, reel types, and installation needs should be checked before placing an order. Reviewing these items may limit setup time and avoid subsequent delays. Request supplier confirmation of suitable settings for your fiber and cable design, including lamp accuracy and operating conditions. A clear plan helps the production system start more smoothly.
Request Pricing For A Ribbon Production Solution Tailored To Your Needs
Manufacturers seeking rollable 12- or 16-fiber formats can evaluate this line at its stated speed of 600 m/min. When requesting a quote, provide your fiber layout, output goals, cable requirements, reel preference, and factory conditions.
Confirm that the proposed system includes the 16-spool pay-off, UV-LED curing arrangement, take-up capacity, and relevant options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. These documents can help understand setup time and ongoing service needs.
Contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. to obtain pricing and configuration details that suit your output plan and site utilities. Verify the supply scope and replacement parts before purchase.
